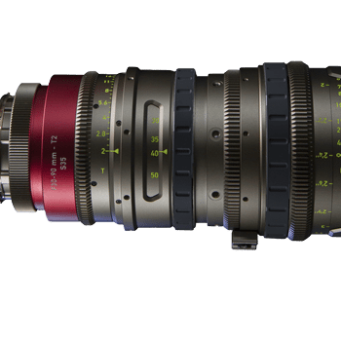

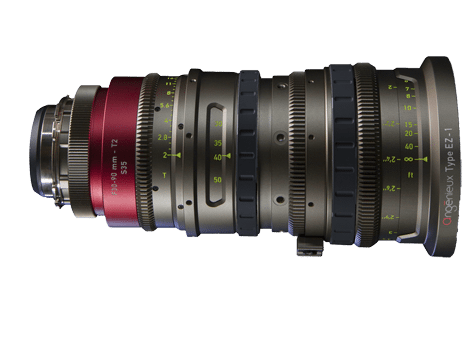

Angenieux EZ-1 S35 30-90mm /T2.0 Zoom Objektiv

klein, leicht, lichtstark, covert S35 und FF/VV (mit entsprechendem Rearelement)

 200,00 / Tag
 800,00 / Woche

Lieferumfang

  • 1x Angenieux EZ-1 S35 30-90mm /T2.0
  • 1x PL oder EF-Mount (bitte rechtzeitig ansagen)
  • 1x Lenscap vorn
  • 1x Cap hinten
  • 1x Case

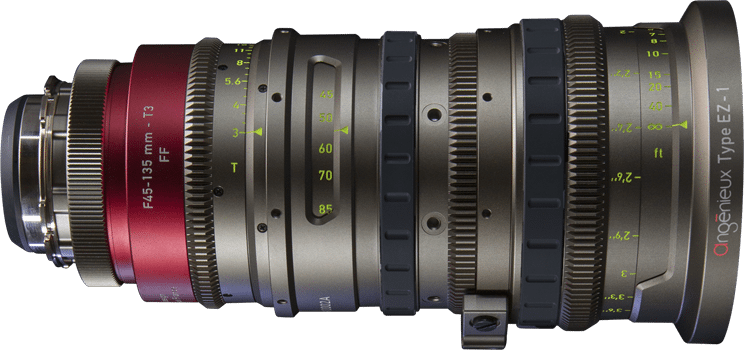

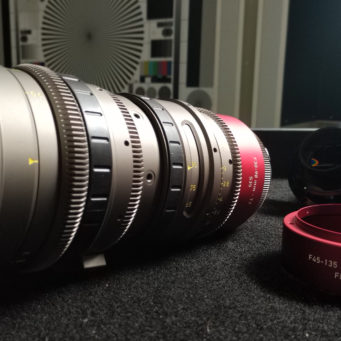

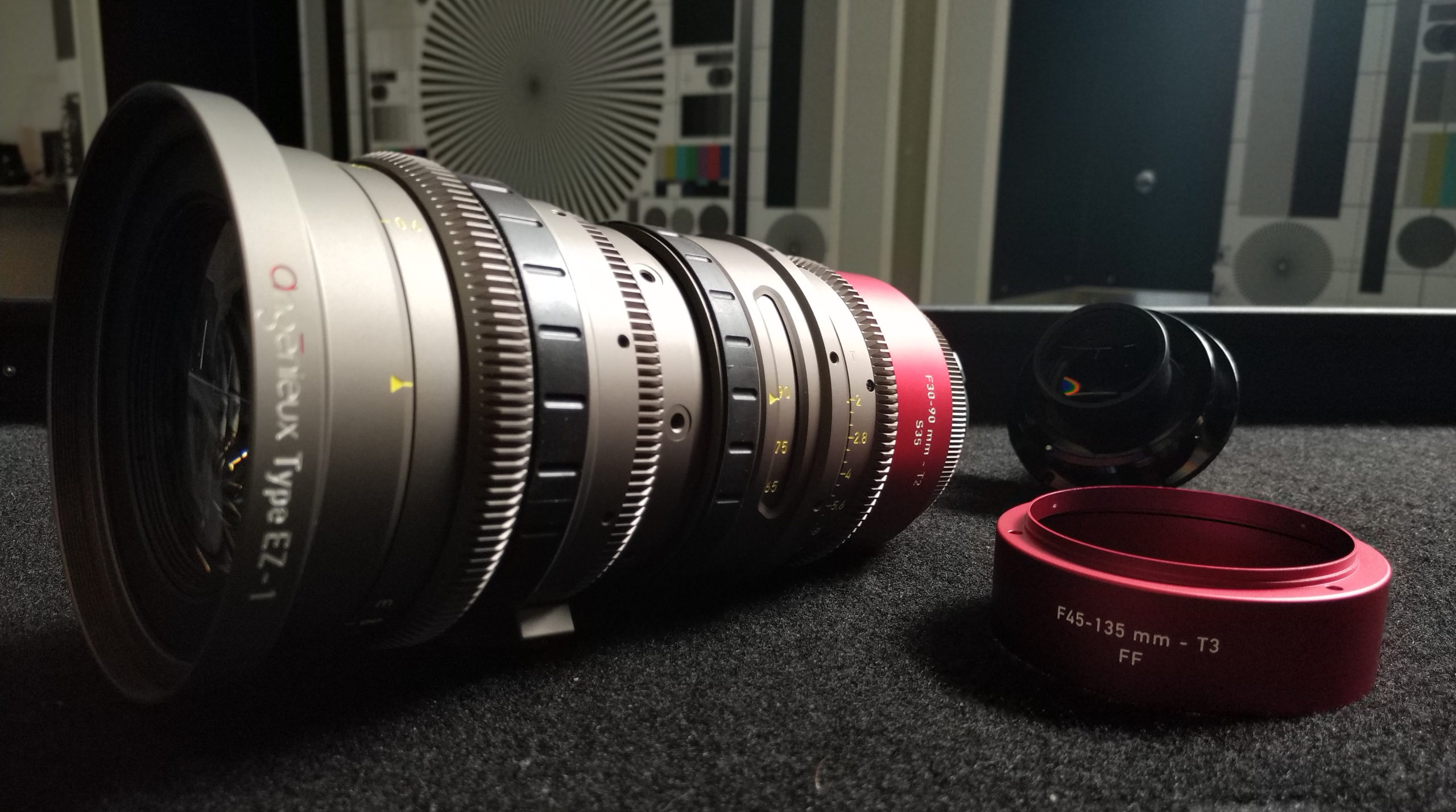

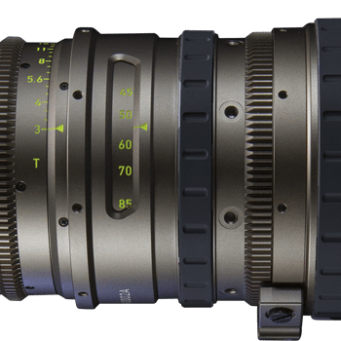

The Angénieux Type EZ-1 for S35mm cameras is a standard zoom lens with a zoom factor of 3x. Its focal range and aperture are set to 30-90mm F1.9/T2. By exchanging the rear lens group, the lens becomes a 45-135mm F2.8/T3 for FF/VistaVision format covering an image circle up to 46mm diagonal.

Main Features

  • 30-90mm T2 / f1.9, image coverage up to 30mm diagonal
  • Extremely fast T2 across zoom range with no ramping
  • Lightweight (2,150g / 4.7 pounds)
  • Internal focusing & zooming, lens size remains constant throughout zooming & focusing range.
  • Traditional angenieux look, colorimetry matches those of Optimo & OPTIMO STYLE series.
  • Short MOD 0.6m / 2 feet
  • In-lens thermal compensation, significantly reduces temperature drift.
  • Precise and ergonomic focus ring with scale rotation of 300 degrees
  • Luminescent FTZ markings, easy reading in dark
  • Available with PL lens mount, easy conversion to EF or E mount by users
  • Front diameter 114mm, matte boxes compatible with those used on OPTIMO & OPTIMO STYLE compact zooms
Spezifications S35-3 perf  Vistavision
Imaging coverage Up to 30 Up to 46
Zoom ratio 3x 3x
Focal length 30 – 90 mm 45 – 135 mm
 Aperture  f/1.9 – T2.0  f/2.8 – T3.0
 MOD  2ft – 0,6m 2ft – 0,6m
Reference image size 24 x 13.5 37.7 x 24.9
Horizontal angular FOV 43.6° – 15.2° 45.6° – 15.9°
Vertical angular FOV 25.1° – 8.8° 30.8° – 10.7°
FOV at MOD at focal min 334 x 184 mm 351 x 228 mm
FOV at MOD at focal max  184 x 110 mm 115 x 77 mm
Front diameter 114 mm 114 mm
Length 226 mm 226 mm
Weight 4.7lb – 2.15kg 4.5lb – 2.05kg
