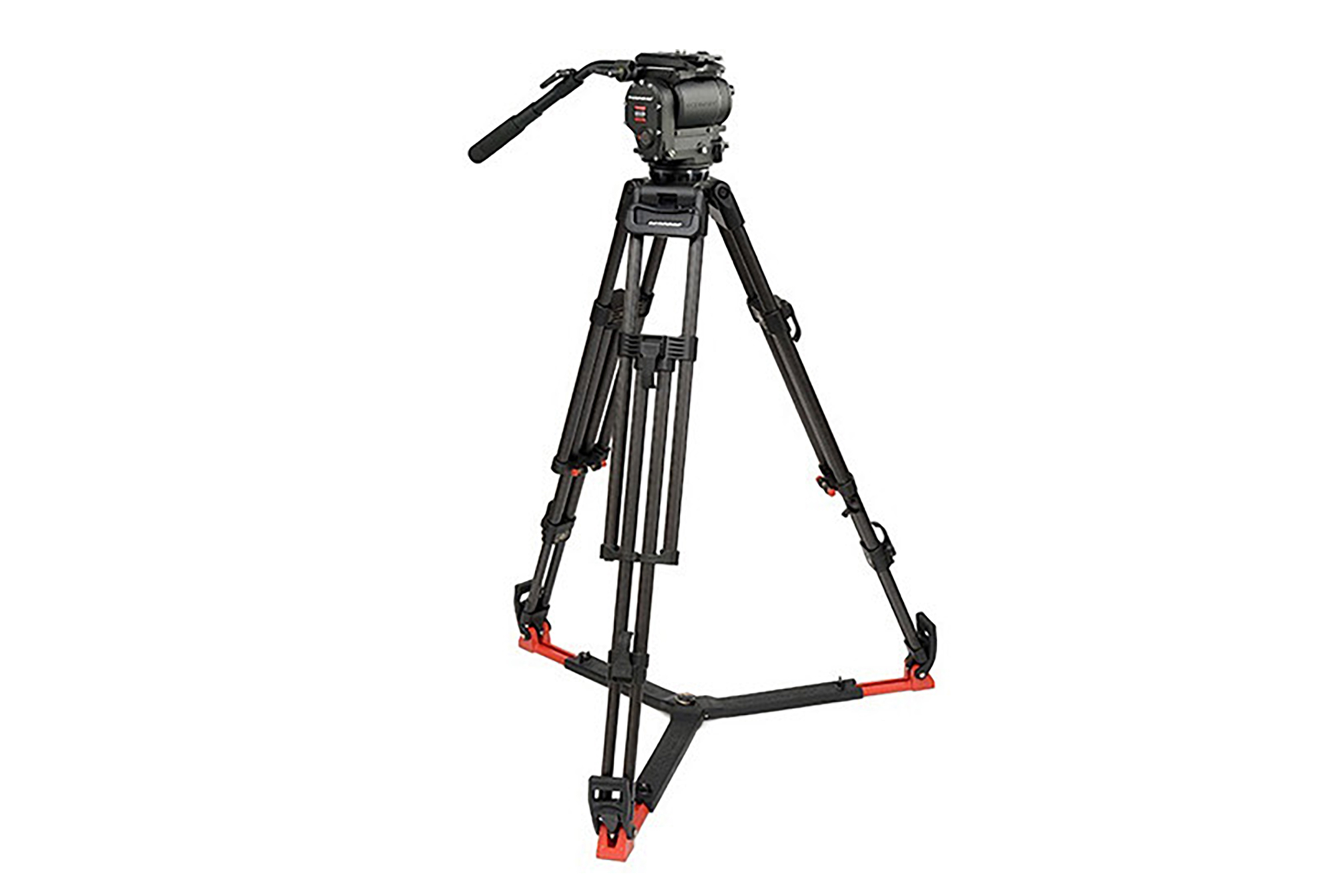

OConnor 1030D, 100mm Stativset

 80,00 / Tag
 320,00 / Woche


  • 1x OConnor 1030D
  • 1x Sideload Plate
  • 2x Kameraschraube
  • 1x Schwenkarm
  • 1x Kontermutter
  • 1x OConnor 30L Beine
  • 1x Mittelspinne
  • 1x Köcher

The head supports 30 pounds worth of camera and accessories at a C.O.G. (center of gravity) 6 inches above the camera platform. The counterbalance system helps prevent the camera from tilting forward or back on the head on its own, and to remain in the position the operator places it without requiring additional effort to hold it in place. The counterbalance system on the 1030D is a stepless system, so it is continuously variable from the maximum weight the head can support all the way down to zero. This makes the 1030D extremely versatile, and suitable for use with heavy ENG style cameras all the way down to lightweight cameras, while maintaining the same operational feel.


The 1030D features interchangeable camera platforms, and comes with a sidelock platform and sliding baseplate as standard. The sidelock platform allows you to mount and remove the camera by lifting straight off the head and not having to slide it in from the back. The fluid head is able to tilt 90 degrees forward and backward, allowing you to tilt the camera straight down and then straight up, all in the same shot. The camera also features independent drag controls and locks for both the pan and tilt. The included 100mm ball base is removable and can be replaced with other available bases. The head features an integrated bubble level for quick leveling confirmation, and the level is illuminated for times you are working in dim light conditions. The included pan handle can be attached to either side of the the fluid head utilizing the mounting rosette on either side of the head.

Camera Plate
Camera Plate Features Sliding Balance Plate
Tripod Platform
Base Mount 100 mm Half Ball
Pan & Tilt
Drag Control Tilt: Continuous
Pan: Continuous
Vertical Tilt +90° to -90°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Load Capacity 30 lb / 13.6 kg
Counter Balance Continuous
Bubble Level 1 x Illuminated
Dimensions 6.6″ / 16.8 cm
Weight 8.7 lb / 3.9 kg
Packaging Info
Package Weight 13.4 lb
Box Dimensions (LxWxH) 18.1 x 10.4 x 7.9″
