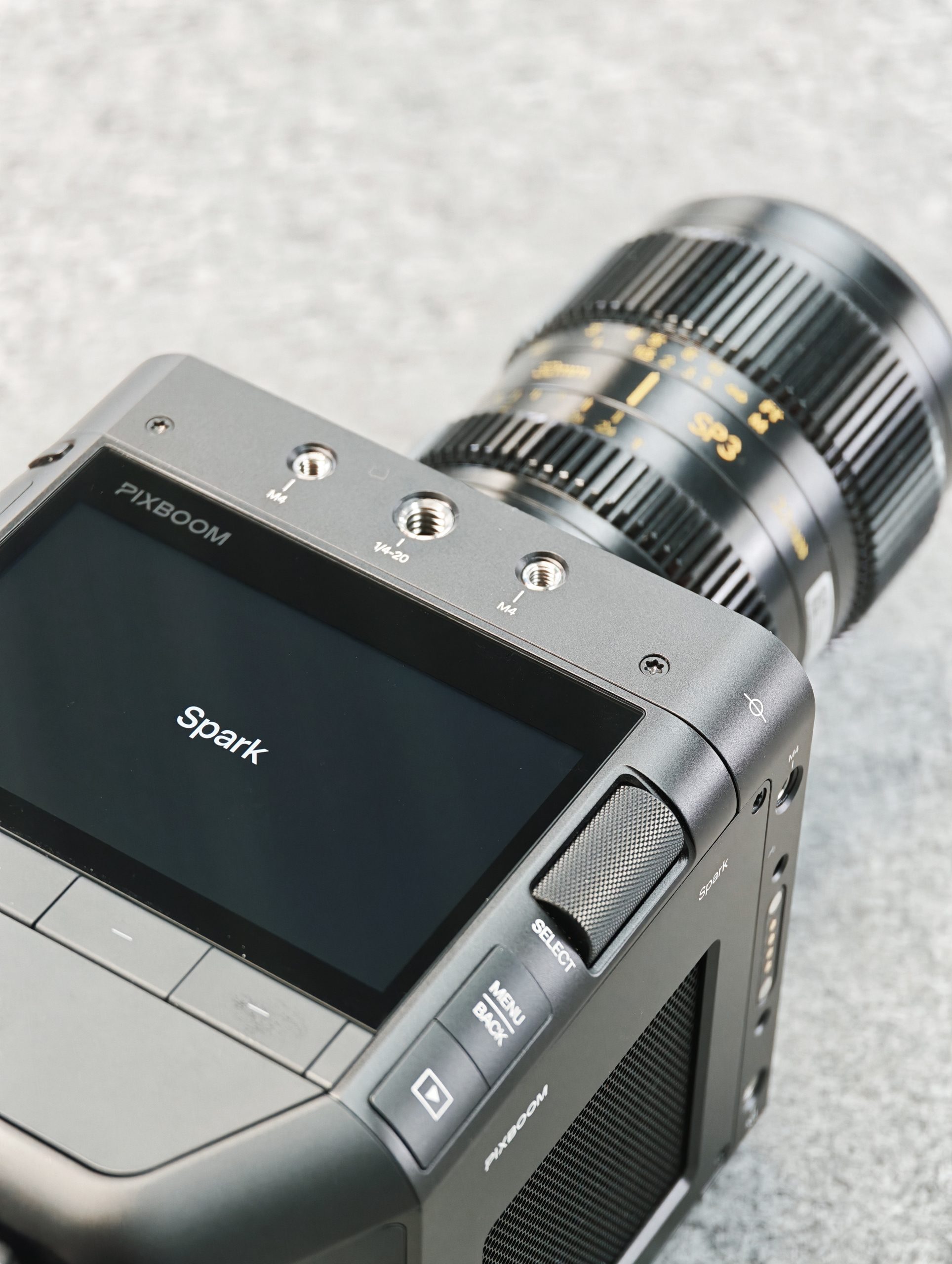

PIXBOOM Spark Highspeed-Kamera

super kompakte Highspeedkamera mit global shutter und dual native ISO

 800,00 / Tag
 3.200,00 / Woche

Lieferumfang

  • 1x PIXBOOM Spark
  • 1x PL-Mount oder E-Mount
  • 1x Smallrig Cage
  • 1x 15mm Baseplate
  • 2x 15mm Rod
  • 1x Top Handle
  • 1x 2.5TB SSD (weitere SSDs optional)

First High-Speed BSI Sensor for Creators.
Get professional shots using just 25% of the lighting you’d normally need. Forget about complicated lighting setups and save hours of time. Go from the studio to the wilderness, easily.

Global Shutter for Distortion-Free Motion.
No jelly effects. No skewed lines. Perfect geometry in every frame.

From Bright Days to Low Lights, Seamlessly.
Dual Native ISO provides 13 stops of dynamic range at both settings, delivering clean images across all lighting conditions.

Unlimited Recording Time.
Record time is only limited by the SSD storage size and no longer restricted by expensive RAM buffer limitations.

Never Miss the Moment with Pre-Record

Capture what happened before you pressed record
Spark’s 2-second Pre-Record feature continuously buffers footage, preserving those spontaneous, unrepeatable moments that would otherwise be lost. When the perfect action unfolds unexpectedly, you’ve already got it.

In-Camera Anamorphic De-Squeeze

See your widescreen vision in real-time
Spark supports in-camera de-squeeze for anamorphic lenses, delivering properly proportioned monitoring without post-processing. Unlock even higher frame rates while maintaining your composition—pushing your slow-motion capabilities even further.

Custom ROI for Extreme Frame Rates

Define your resolution,
unleash impossible speeds.
Take complete control with customizable ROI settings that let you trade resolution for extraordinary frame rates. Capture the precise detail you need at speeds up to an astonishing 15,000fps—giving you the flexibility to reveal microscopic moments invisible to the naked eye.

Broadcast-ready signal output for demanding productions
Integrated high-durability 12G-SDI connection delivers uncompromising video monitoring capabilities up to 4K 60P. Connect directly to professional monitoring systems, broadcast equipment, and recording devices with the industry-standard interface trusted by filmmakers worldwide.

Sensor Specs
Sensor readout Global Shutter
Sensor type 14.2MP super 35mm global shutter CMOS
Sensor size 4608 x 3072 | 25.34 mm x 16.90 mm (diagonal: 30.46mm)
Dynamic range 13 stops
Mount Type
Type Interchangeable locking mount (E/PL)
Electronic communication Support
Recording
Max data rates Up to 10 GB/s using Pixboom Pro Card
Pixboom RAW solution max frame rates
  • 670 fps at 4.6K Open Gate 3:2 (4608 × 3072)
  • 887 fps at 4K 16:9 (4096 × 2304)
  • 1171 fps at 4k 2.37:1 (4096 × 1728)
  • 1724 fps at 2k 16:9 (2048 × 1152)
  • 2182 fps at 2k 2.37:1 (2048 × 864)

For detailed recording specs, please scroll up and click on ‘Explore Performance Modes’.

General
Construction Aluminum alloy
Dimensions (without lens mount) 108 × 110 × 130mm / 4.25 × 4.33 × 5.12 in (H × W × L, largest fixed dims.)
Weight (without lens mount and memory card) < 1.1kg
Media type Removable Pixboom Pro Card
Media type export speed 20Gbps (USB3.2 Gen2X2)
Media export method Export via Type-C without requiring any card reader
Screen 3.5-inch 6.22M-dot 16:9 touchscreen
Battery type Integrated V-lock battery interface optimized for V-lock batteries
DC Power input 15-24 V via 5-pin DC-IN
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage temperature -40°C to 85°C (-40°F to 185°F)
Features
Remote control
  • Wi-Fi for camera control and preview via dual band (2.4 GHz/5 GHz) antenna
  • Wired control via USB-C or 9-pin EXT Port allowing remote camera control
Monitor outputs
  • Integrated top touchscreen LCD with preview and camera control
  • 12G-SDI for 4k output
  • HDMI 2.0 for 4k output
Additional I/O
  • Genlock through 9-Pin EXT Port
  • Linear Timecode (LTC) through 9-Pin EXT Port
  • GPIO through 9-Pin EXT Port
Software
Pixboom control Access full camera controls and live preview from mobile devices.
Pixboom Cine Software for processing Pixboom RAW files
