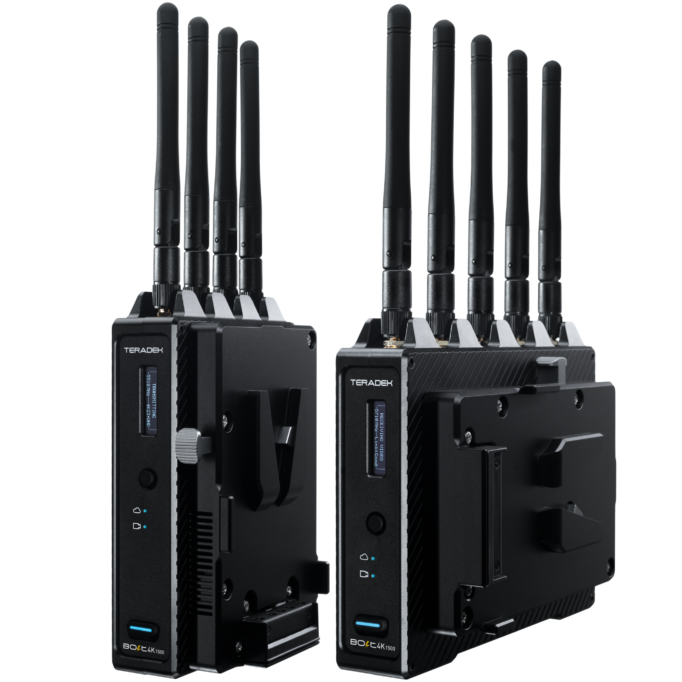

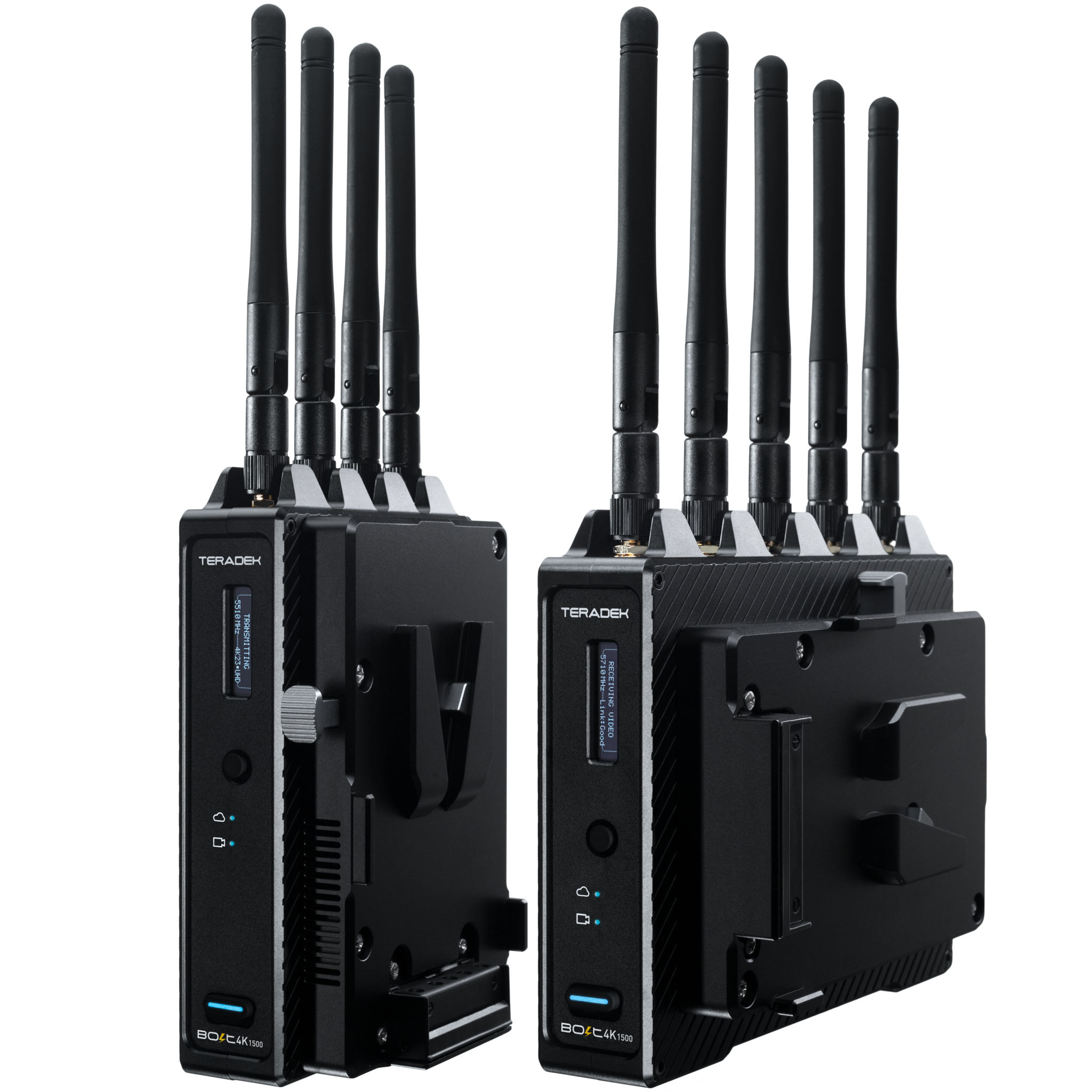

Teradek Bolt 4K 1500 TX/RX Set

UHD / 4K Videofunstrecke

 400,00 / Tag
 1.600,00 / Woche

Lieferumfang

  • 1 x Bolt 1500 12G-SDI/HDMI Wireless TX
  • 1 x Bolt 1500 12G-SDI/HDMI Wireless RX
  • 1 x Lightstand Adapter 3/8in
  • 1 x Hot Shoe Adaptor
  • 2 x HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
  • 2 x (Bit 118) 2pin Conn. to PowerTap – 18in Cable
  • 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
  • 2 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1 x Teradek Case Large – Bolt 4K TX/2RX
  • 1 x Teradek Vinyl Zipper Bag 250x150mm
  • 1 x Teradek Vinyl Zipper Bag 250x230mm
  • 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
  • 9 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 1 x Teradek Standard Terms and Conditions
  • 1 x Insert – Product Register
  • 1 x Quickstart Guide – Bolt 4K 750/1500

Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.

Real-Time 4K Wireless Video

Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 1500 ft. of range.

True HDR Color

Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

Rock-Solid Reliability

Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Universal Compatibility

Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Inputs/Outputs

Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0

Camera Metadata

Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.

Bolt App for iOS

Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand.

Bolt 4K 1500 TX

Video Inputs

  • 1 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
  • 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)

Video Outputs

  • 1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ω

Sdi Ancillary Data Support

  • Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Input Cross Conversion

  • Yes, HDMI to SDI

Delay Tx To Rx

  • <0.001sec

Supported Resolutions

  • 4Kp23.98/24/25/29.97/30/50/59.94/60
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Video Compression

  • Visually Lossless

Video Format Conversion Support

  • Connect an HD source to the Tx and get a 4K signal out of Rx
  • Connect a 4K source to the Tx, get HD resolution out of Rx
  • You can also mix & match from a single source:
  • 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
  • Input/output configurations are controlled directly on units or via Bolt 4K app

Color Correction

  • None

Audio Format

  • 48kHz 24-bit PCM

Audio Input

  • Embedded SDI/HDMI Audio Input (2 Channel)

Dimensions

  • 132 x 91 x 27 mm

Weight

  • Bolt 4K Tx without antennas (no battery plates) = 360g
  • Bolt 4K Tx with 4x antennas (no battery plates) = 408g
  • Bolt 4K Rx without antennas (no battery plates) = 440g
  • Bolt 4K Rx with 5x antennas (no battery plates) = 496g
  • Gold-Mount battery plate set (male+female) = +172g
  • V-Mount battery plate set (male+female) = +220 g

Construction

  • Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

  • Multiple mounting options with 1/4″x20 and M3 holes

Configuration Interfaces

  • OSD with Menu, Joystick Navigation

Switches

  • On/Off Switch

Usb Interface Functionality

  • Upgrade via Micro-USB

Antennas

  • 4 External 2dBi RP-SMA antennas (included)

Wireless

  • Non-DFS Frequencies:
  • 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  • DFS Frequencies:
  • 5.270 ~ 5.670 GHz

Channel Bandwidth

  • 14x 40MHz wide channels

Rf Channel Selection

  • Auto, Manual
  • Manual available for non-DFS Channels

Encryption

  • AES-256, RSA-1024 key exchange

Rf Power

  • 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power)

Range

  • Up to 1500 ft, line of sight

Unicast Multicast

  • Can connect one Transmitter to up to 6 Receivers

Noise Rejection

  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Power Input

  • 2-Pin Circular locking Connector 6-28V DC

Battery

  • None, optional Gold or V mount battery plate

Nominal Power Consumption

  • 20 Watts

Operating Temperature

  • 0-40℃

Bolt 4K 1500 RX

Video Outputs

  • 2 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
  • 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)

Sdi Ancillary Data Support

  • Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Input Cross Conversion

  • Yes, HDMI to SDI

Delay Tx To Rx

  • <0.001sec

Supported Resolutions

  • 4Kp23.98/24/25/29.97/30/50/59.94/60
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Video Compression

  • Visually Lossless

Video Format Conversion Support

  • Connect an HD source to the Tx and get a 4K signal out of Rx
  • Connect a 4K source to the Tx, get HD resolution out of Rx
  • You can also mix & match from a single source:
  • 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
  • Input/output configurations are controlled directly on units or via Bolt 4K app

Color Correction

  • 17x17x17 3D LUT (supports 10-bit color)

Audio Format

  • 48kHz 24-bit PCM

Audio Output

  • Embedded SDI/HDMI Audio Output (2 Channel)

Dimensions

  • 112 x 139 x 27 mm

Weight

  • Bolt 4K Tx without antennas (no battery plates) = 360g
  • Bolt 4K Tx with 4x antennas (no battery plates) = 408g
  • Bolt 4K Rx without antennas (no battery plates) = 440g
  • Bolt 4K Rx with 5x antennas (no battery plates) = 496g
  • Gold-Mount battery plate set (male+female) = +172g
  • V-Mount battery plate set (male+female) = +220 g

Construction

  • Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

  • Multiple mounting options with 1/4″x20 and M3 holes

Configuration Interfaces

  • OSD with Menu, Joystick Navigation

Switches

  • On/Off Switch

Usb Interface Functionality

  • Upgrade via Micro-USB

Antennas

  • 5 External 2 dBi antennas (included) or optional Array Panel Antenna

Wireless

  • Non-DFS Frequencies:
  • 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  • DFS Frequencies:
  • 5.270 ~ 5.670 GHz

Channel Bandwidth

  • 14x 40MHz wide channels

Rf Channel Selection

  • Auto, Manual
  • Manual available for non-DFS Channels

Encryption

  • AES-256, RSA-1024 key exchange

Rf Power

  • 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

Range

  • Up to 1500 ft, line of sight

Unicast Multicast

  • Can connect one Transmitter to up to 6 Receivers

Noise Rejection

  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Power Input

  • 2-Pin Circular locking Connector 6-28 VDC

Battery

  • None, optional Gold or V mount battery plate

Nominal Power Consumption

  • 18 Watts

Operating Temperature

  • 0-40℃
