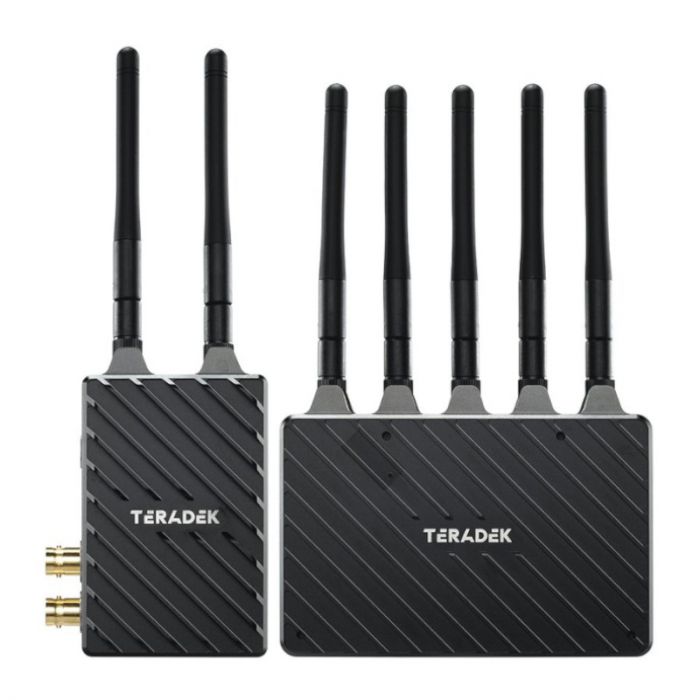

Teradek Bolt 4K LT 1500 TX/RX Set (HDMI 4K, SDI 1080p)

kleine Teradek 4K Medium-Range Videofunkstrecke

€ 220,00 / Tag
€ 880,00 / Woche

Lieferumfang

  • 1x Bolt 4K LT TX 1500
  • 1x Bolt 4K LT RX 750
  • 1x Lightstand Adapter
  • 2x Ultradünnes HDMI Male Typ-A (Full) zu HDMI Male Typ-A (Full) Kabel – 18″
  • 1x 2pin Connector zu PowerTap Kabel (P-Tap/D-Tap) – 18″
  • 1x 2pin zu 2pin Connector Kabel (Alexa) – 18″
  • 1x Micro-USB (5pin) zu USB-Kabel (Firmware-Kabel) – 36″
  • 2x 3G-SDI (BNC zu BNC) Kabel – 10″
  • 1x 18 Watt AC Adapter-Kabel (2pin Connector) – 6ft
  • 7x TX/RX Antenne (2dBi WiFi 2.4/5.8 GHz, Small)
teradek_bolt_4k_lt_1500_mieten_leihen_1
YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Hauptmerkmale

  • 4K HDMI Eingang
  • 3G-SDI Eingang
  • 10-bit HDR Video
  • Verbindung mit bis zu 6 Empfängern
  • Übertragungsreichweite bis ca. 450 m
  • geringe Latenz <0.001 Sek
  • Cross-kompatibel mit Bolt 4K-Funkstrecken (nicht kompatibel mit Bolt 500, 500 LT, 1000, 1000 LT, etc.)
  • kompakt und leicht
  • Bolt Manger iOS (via Bluetooth)
  • Signalschutz durch 256-AES Verschlüsselung und RSA-1024 Key Pairing
  • 1080p120 Unterstützung

Bolt 4K LT 750 TX

Video Inputs

  • 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  • 1 x HDMI 1.4b Type-A receptacle

Video Outputs

  • 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)

Sdi Ancillary Data Support

  • Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Delay Tx To Rx

  • <0.001sec

Input Cross Conversion

  • Yes, HDMI to SDI

Supported Resolutions

  • 4Kp23.98/24/25/29.97/30 (HDMI only)
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Video Compression

  • Visually Lossless

Color Correction

  • None

Audio Format

  • 48kHz 24-bit PCM

Audio Input

  • Embedded SDI/HDMI Audio Input (2 Channel)

Dimensions

  • 60mm x 103mm x 33mm

Weight

  • 206g (7.3oz)

Construction

  • Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

  • Multiple mounting options with 1/4″x20 and M3 holes

Configuration Interfaces

  • OSD with Menu, Joystick Navigation

Switches

  • On/Off Switch

Mobile App

  • Bolt App

Desktop App

  • Bolt Manager application for OSX & Windows

Usb Interface Functionality

  • Upgrade via Micro-USB

External Control

  • Via Bolt App

Bluetooth

  • 2.4 GHz

Antennas

  • 2 External 2dBi antennas (included)

Wireless

  • Non-DFS Frequencies:
  • 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  • DFS Frequencies:
  • 5.270 ~ 5.670 GHz

Number Of20 Mhz Channels

  • 25 (region dependent)

Number Of40 Mhz Channels

  • 13 (region dependent)

Channel Bandwidth

  • 20MHz, 40MHz

Rf Channel Selection

  • Auto, Manual

Encryption

  • AES-256, RSA-1024 key exchange

Rf Power

  • 19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power)

Rf Sensitivity

  • 2 External 2dBi antennas (included)

Range

  • Up to 1500 ft, line of sight

Unicast Multicast

  • Can connect one Transmitter to up to 6 Receivers

Noise Rejection

  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Power Input

  • 2-Pin Circular locking Connector 6-28 VDC

Battery

  • None, optional Sony/Canon dual battery plate

Nominal Power Consumption

  • 9 Watts

Operating Temperature

  • 0-40℃

Bolt 4K LT 750 RX V-Mount

Video Outputs

  • 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
  • 1 x HDMI 1.4b Type-A receptacle

Sdi Ancillary Data Support

  • Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Delay Tx To Rx

  • <0.001sec

Supported Resolutions

  • 4Kp23.98/24/25/29.97/30 (HDMI only)
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080psf23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60
  • 480p50 576p59.94/60
  • 480i(NTSC)/576i(PAL)

Video Compression

  • Visually Lossless

Video Format Conversion Support

  • No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 4K XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)

Color Correction

  • None

Audio Format

  • 48kHz 24-bit PCM

Audio Output

  • Embedded SDI/HDMI Audio Output (2 Channel)

Dimensions

  • 122mm x 94mm x 27mm

Weight

  • 292g (10.3oz)

Construction

  • Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

  • Multiple mounting options with 1/4″x20 and M3 holes

Configuration Interfaces

  • OSD with Menu, Joystick Navigation

Switches

  • On/Off Switch

Mobile App

  • Bolt App

Desktop App

  • Bolt Manager application for OSX & Windows

Usb Interface Functionality

  • Upgrade via Micro-USB

External Control

  • Via Bolt App

Bluetooth

  • 2.4 GHz

Antennas

  • 5 External 2 dBi antennas (included)

Wireless

  • Non-DFS Frequencies:
  • 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  • DFS Frequencies:
  • 5.270 ~ 5.670 GHz

Number Of20 Mhz Channels

  • 25 (region dependent)

Number Of40 Mhz Channels

  • 13 (region dependent)

Channel Bandwidth

  • 20MHz, 40MHz

Rf Channel Selection

  • Auto, Manual

Encryption

  • AES-256, RSA-1024 key exchange

Rf Power

  • 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

Rf Sensitivity

  • 5 External 2 dBi antennas (included)

Range

  • Up to 1500 ft, line of sight

Unicast Multicast

  • Each Receiver can register up to 6 Transmitters

Noise Rejection

  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Power Input

  • 2-Pin Circular locking Connector 6-28 VDC

Battery

  • V-Mount

Nominal Power Consumption

  • 11 Watts

Operating Temperature

  • 0-40℃
