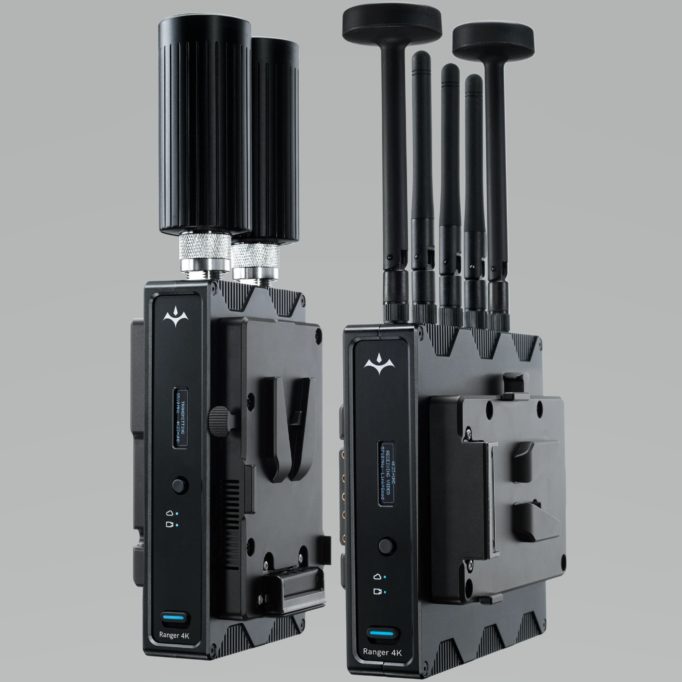

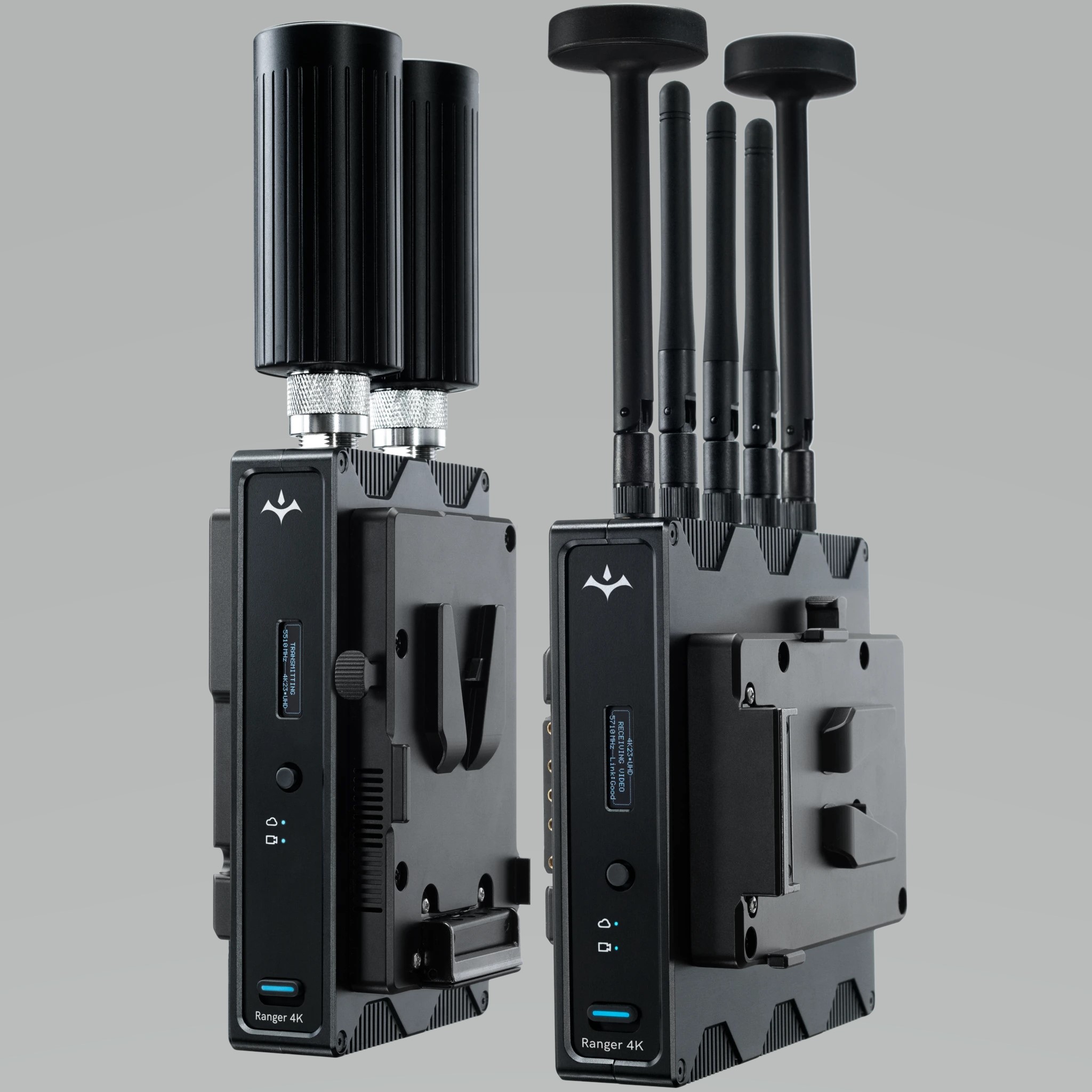

Teradek Ranger 4K TX/RX Set

Long-Range UHD / 4K Videofunstrecke für Broadcast und wenn es wirklich ernst ist

€ 400,00 / Tag
€ 1.600,00 / Woche

Lieferumfang

  • 1 x Antenna Array Plate 3rd Gen V Mount
  • 1 x Ranger 4K 12G-SDI/HDMI – Wireless TX V-Mount
  • 1 x Ranger 4K 12G-SDI/HDMI – Wireless RX V-Mount
  • 4 x Battery Slot Cover
  • 1 x Lightstand Adapter 1/4-20in
  • 4 x Screw Flat Head Phillips Black SS M2 x 4mm
  • 1 x (Bit 118) 2pin Conn. to PowerTap – 18in Cable
  • 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
  • 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
  • 5 x RP-SMA Male to RP-SMA Male 4in/10cm Cable
  • 2 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1 x Teradek Case XL – Ranger 4K TX/RX and Antenna Array
  • 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
  • 3 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 2 x Antenna H Mushroom
  • 1 x Antenna H N-type Barrel
  • 1 x Antenna V N-type Barrel
teradek_ranger_4K_broadcast_tx-rx_set_mieten_leihen_2
teradek_ranger_4K_broadcast_tx-rx_set_mieten_leihen_2
Teadek_Ranger_4K_broadcast_wireless_tx-rx_set_mieten_leihen_1

Die gleiche Performance wie der Teradek Bolt 4K Max + zusätzliche Features die speziell für Broadcast und schwierige RF Umgebungen gedacht sind.

Highlights:

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidths
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Broadcast-capable
  • Multicast-capable up to 6 receivers

Ranger 4K is a zero-delay (< 1 ms) wireless video system that transmits uncompressed 4K HDR video up to 5,000 ft. line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of industry-leading video quality and wireless integrity.

Power Through Interference

Our patented Joint Source Channel Coding (JSCC) technology, utilizing MIMO and OFDM, enables the transmission of uncompressed, 10-bit, 4:2:2 video at less than 1 millisecond of delay. Ranger’s exclusive RF design is UNII-5 ready and utilizes 40 MHz / 20 MHz channels with far greater efficiency than H.264 / HEVC encoding solutions and offers better performance in the noisiest environments.



Uncompressed 4K HDR Video

  • 10-bit, 4:2:2, Patented JSSC Technology

Flexible Operating Frequencies

  • 4.9 to 6.0 GHz with 5 MHz Fine Tuning Intervals
  • UNII-5 Ready

Secure Video Transmission

  • AES-256 Encryption

Broadcast Capable

  • Transmit to Unlimited Receivers Simultaneously
What is the difference between Ranger and Bolt?
While Ranger and Bolt utilize the same underlying zero delay technology, Ranger provides a number of enhancements for live productions:

• Expanded frequency range from 4.9 GHz to 6.0 GHz
• Licensed band operation
• H+V antennas, providing better image quality over longer ranges
• N-type connectors on Ranger TX
• Finer manual frequency control
