Teradek Bolt 954 Sidekick II 3G-SDI Companion Receiver (Video RX)

Zusatzempfänger für die Teradek Bolt 500/1000/3000er Serie

€ 50,00 / Tag
€ 200,00 / Woche

Lieferumfang

  • 1x Sidekick II
  • 1x D-Tap Kabel
  • 1x SDI Spiral Kabel

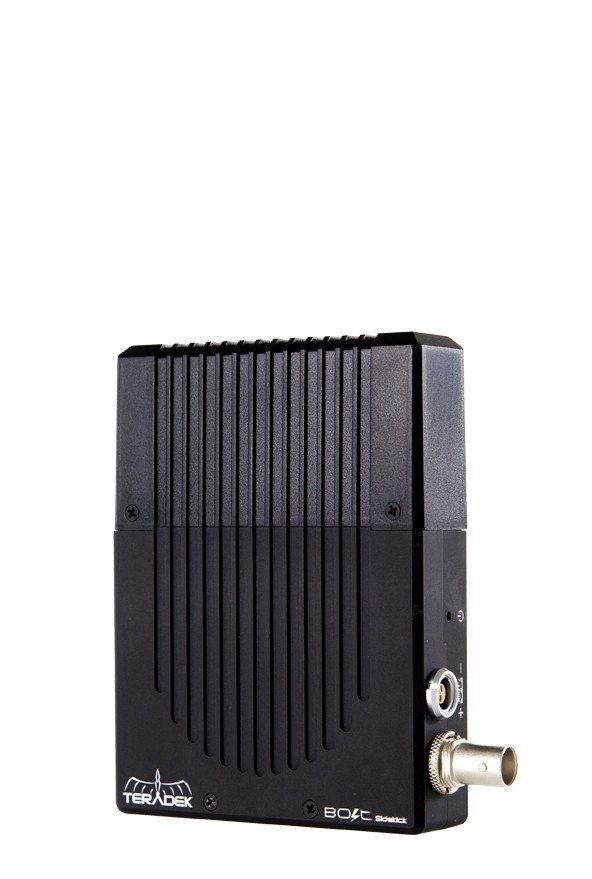

teradek_sidekick_II_sdi_companion_receiver_mieten_leihen

Teradek Sidekick II HD-SDI

Zusatzempfänger für die Teradek Bolt 500/1000/3000er Serie



Bolt Sidekick ist ein leichter, Zusatzempfänger der für alle Teradek Bolt Pro 500, 1000 und 3000-Systeme geeignet ist.

  • Leichter HD-SDI-Empfänger
  • Für alle Teradek Bolt Pro-Übertragungssysteme
  • Reichweite: ca. 91,44 Meter
  • 3G-SDI-Norm

Video –

Video Outputs

  • • 1 x SD/HD/3G-SDI (75 Ohm BNC)

Sdi Ancillary Data Support

  • • Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to:
  • • https://support.teradek.com/hc/en-us/articles/217446087

Color Sampling

  • • For SDI: YCbCr 4:2:2, 10-bit

Supported Input Resolutions –

Supported Resolutions

  • • 1080p60/59.94/50/30/29.97/25/24/23.98
  • • 1080psf30/29.97/25/24/23.98
  • • 1080i60/59.94/50
  • • 720p60/59.94/50
  • • 480p59.94/576p50 (via HDMI ports only)
  • • 480i(NTSC)/576i(PAL)

Video Processing –

Video Compression

  • • visually lossless

Test Pattern Generator Support

  • • Custom output formatted test pattern over HDMI and SDI.

Video Format Conversion Support

  • • None

Color Correction

  • • None

Audio Processing –

Audio Compression

  • • 48KhZ 24-bit PCM

Physical –

Dimensions

  • • 1.0″x3.4″x4.5″(25.0×85.5×114.0mm)

Weight

  • • 10.1oz (288g)

Construction

  • • Milled Aluminum(Chassis) and regulation-compliant PCB
  • • Plastic Cap

Interfaces –

Http

  • • None

Configuration Interfaces

  • • On Screen Display on Video Output, Windows/Mac Desktop configuration utility

Switches

  • • On/Off and Reset Switch

Desktop App

  • • Feature-rich Bolt Manager Application for OSX & Windows

Usb Interface Functionality

  • • Upgrade via Mini-USB

Network –

Wireless

  • • 5GHz (20&40Mhz), DFS Frequencies Available

Rf Channel Selection

  • • Auto only (NOT configurable)

Encryption

  • • AES-128

Rf Power

  • • 15dBm EIRP

Range

  • • Up to 300ft line of sight

Unicast Multicast

  • • 1 Bolt TX can transmit to a maximum of 4 RX

Noise Rejection

  • • Can coexist with WiFi and 5GHz cordless phones

Power –

Power Input

  • • 2-Pin Connector 7-17 VDC

Battery

  • • None

Nominal Power Consumption

  • • 6.9 Watts (Measured at 1080p60)

Operating Temperature

  • • 0 ~ 40 deg-C
