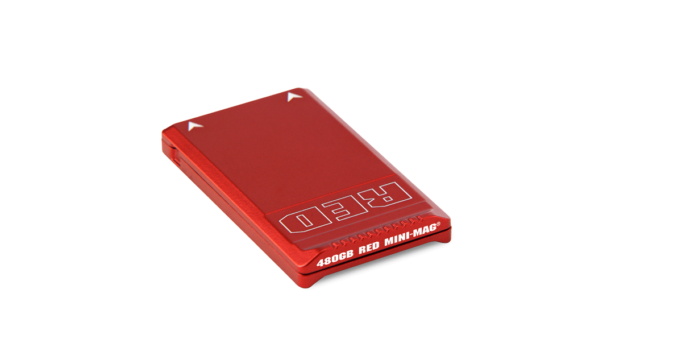

RED MINI-MAG 480GB

für RED DSMC2 Kameras, große Kapazität und hohe maximaler Datenrate

 40,00 / Tag
 160,00 / Woche

Lieferumfang

  • 1x RED MINI-MAG 480GB

The RED MINIMAG® is the smallest, fastest, and most powerful media option available. Compared to their predecessor, the REDMAG 1.8”, RED MINI-MAGs have faster read/write speeds to support higher frame rates and resolutions with minimal compression.

RED MINIMAG data transfer speeds are up to 50% faster on WEAPON, compared to their speeds on EPIC DRAGON. Capable of supporting simultaneous R3D® and Apple ProRes or Avid DNx recording on DSMC2® camera systems—RED MINI-MAGs offer the ideal media solution—whatever your workflow might be.

Manufactured from robust aluminum, RED MINI-MAGs offer rugged reliability in a compact form factor. Available in multiple capacities, standard grey models provide maximum read/write speeds up to 225 MB/s—while the turbo-charged red models can achieve up to 300 MB/s for even lower REDCODE® compression.

NOTEMedia max data rates vary based on camera BRAIN®.

NOTERED MINI-MAGs require a RED MINIMAG Side SSD Module for use with your RED EPIC® or SCARLET® BRAIN.

RED MINIMAG®
DIMENSIONSHeight: 1.78 in. (45 mm)
Width: 0.32 in. (8 mm)
Depth: 2.89 in. (73 mm)
WEIGHT0.11 lbs (0.05 kg)
MAX DATA RATES (480GB & 960GB)WEAPON (Carbon Fiber) up to 300 MB/s
RED EPIC-W up to 275 MB/s
WEAPON (Magnesium) up to 225 MB/s
EPIC DRAGON up to 200 MB/s
SCARLET-W up to 170 MB/s
RED RAVEN up to 140 MB/s
SCARLET DRAGON up to 72 MB/s
MAX DATA RATES (120GB & 240GB)WEAPON (Carbon Fiber) up to 225 MB/s
RED EPIC-W up to 225 MB/s
WEAPON (Magnesium) up to 225 MB/s
EPIC DRAGON up to 170 MB/s
SCARLET-W up to 170 MB/s
RED RAVEN up to 140 MB/s
SCARLET DRAGON up to 72 MB/s
OPERATING TEMPERATURE10°C to 40°C (50°F to 104°F)
STORAGE TEMPERATURE–20°C to 50°C (–4°F to 122°F)
OPERATING HUMIDITY20% to 80%, non-condensing
STORAGE HUMIDITY10% to 90%, non-condensing
USABLE CAPACITY (FAT32)RED MINIMAG 120GB: 120.02GB / 111.78GiB
RED MINIMAG 240GB: 240.03GB / 223.54GiB
RED MINIMAG 480GB: 480.05GB / 447.08GiB
RED MINIMAG 960GB: 960.08GB / 894.14GiB
